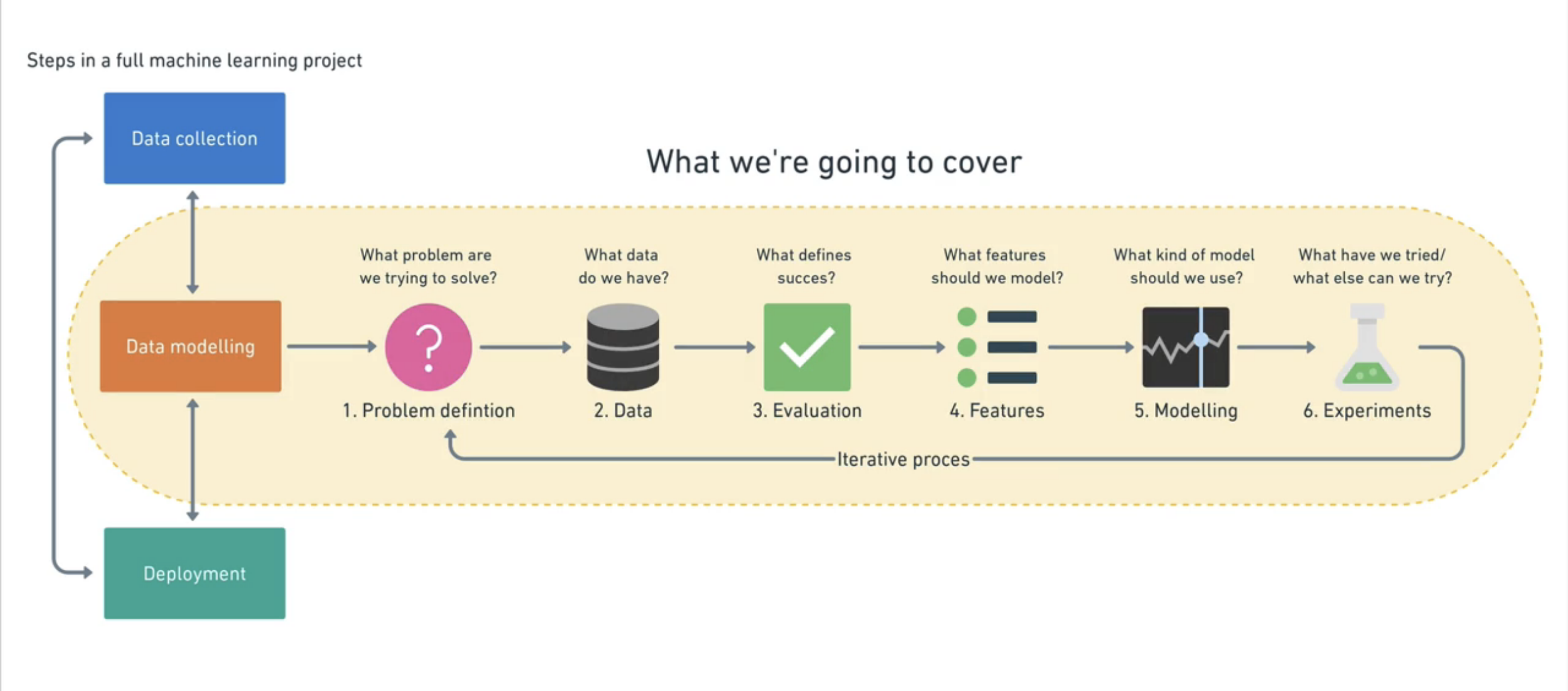

Machine Learning Framework


Problem Defination Basics#What is Machine Learning?

Know the type of the problem, which Machine Learning model will suite to solve that problem.

Data Basics#Types of Data

Type of data we got to solve above problem

Evaluation

In this step we need to define what success means to us. For a heart disease calssification our model should give 99% accuricy. For a car insurance company the model giving 95% accuracy for insurance claims is good to continue work.

Features

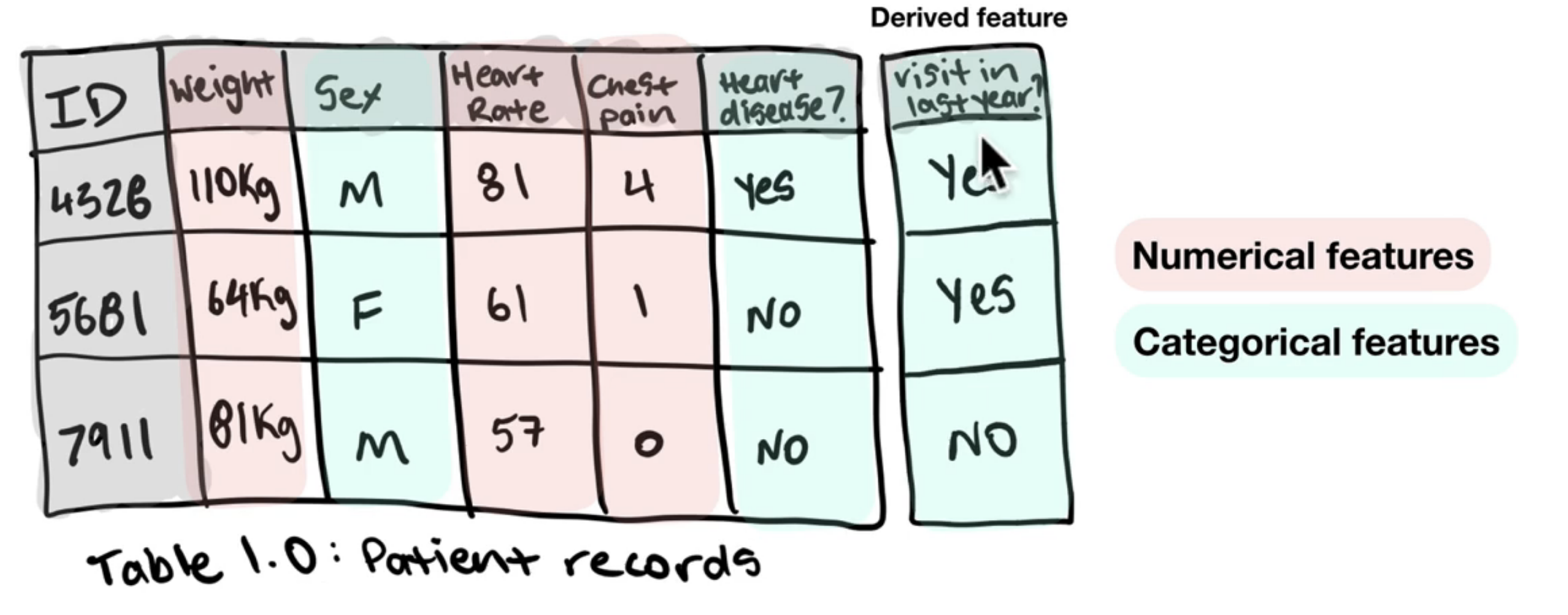

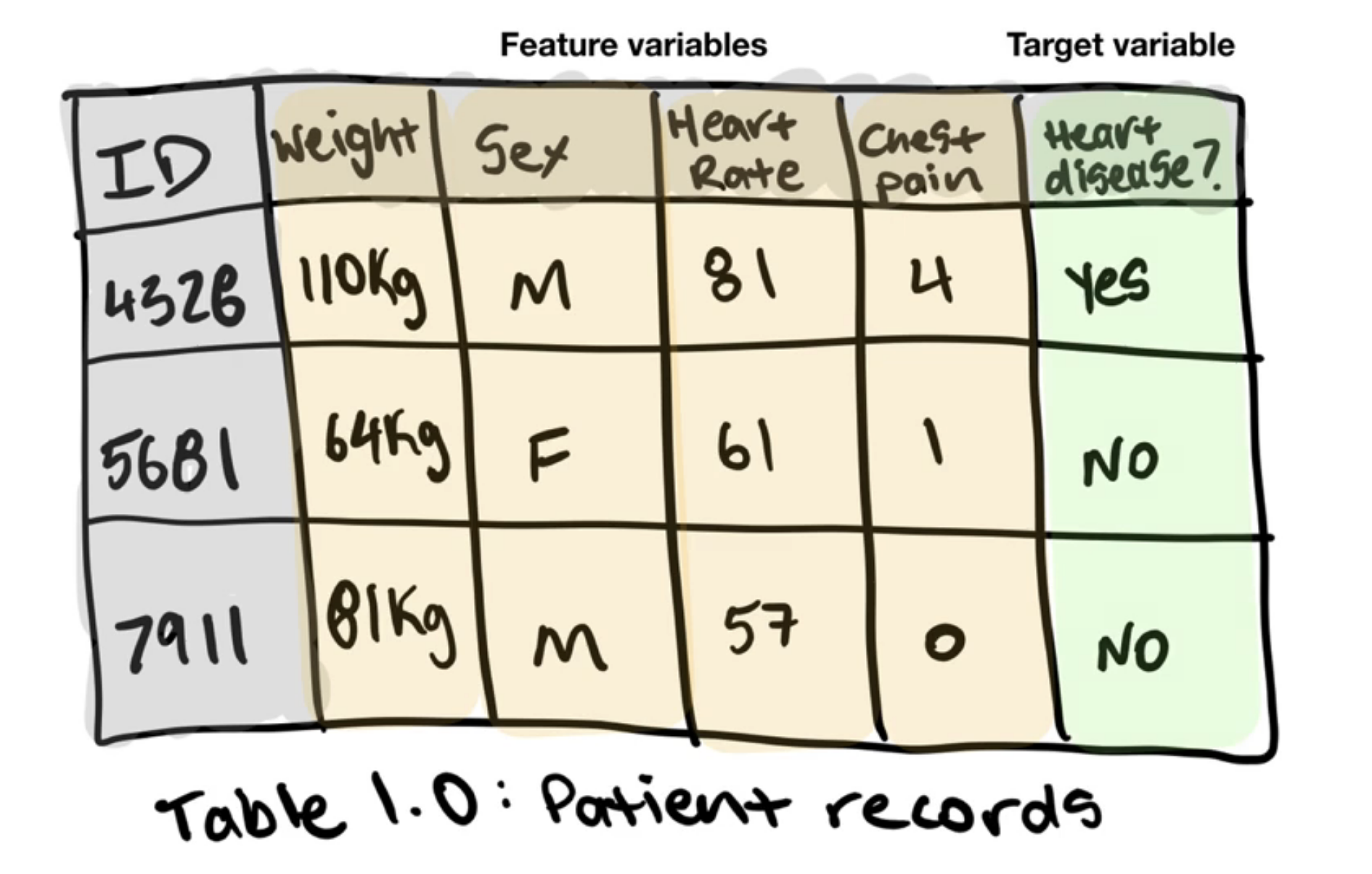

features.png sub-features.png

Modelling

Splitting Data

70-80% for training - Use this set for model training 10-15% for validation - Use this set for model hyperparameter tuning and experimentation evaluation 10-15% for testing - Use this set for model testing and comparison

Never ever show test data to the model while training, or the results in the test phase will not be correct. as we can consider it as a cheating.

Picking the Model

It is important to pick a training model according to the problem as different problems require different type of ML models.

Note: CatBoost, dmlc Boost, Random forest algorithm works best with Structured data, while Deep Learning, Tranfer Learning, Neural Network works best with Unstructured data.

Tuning

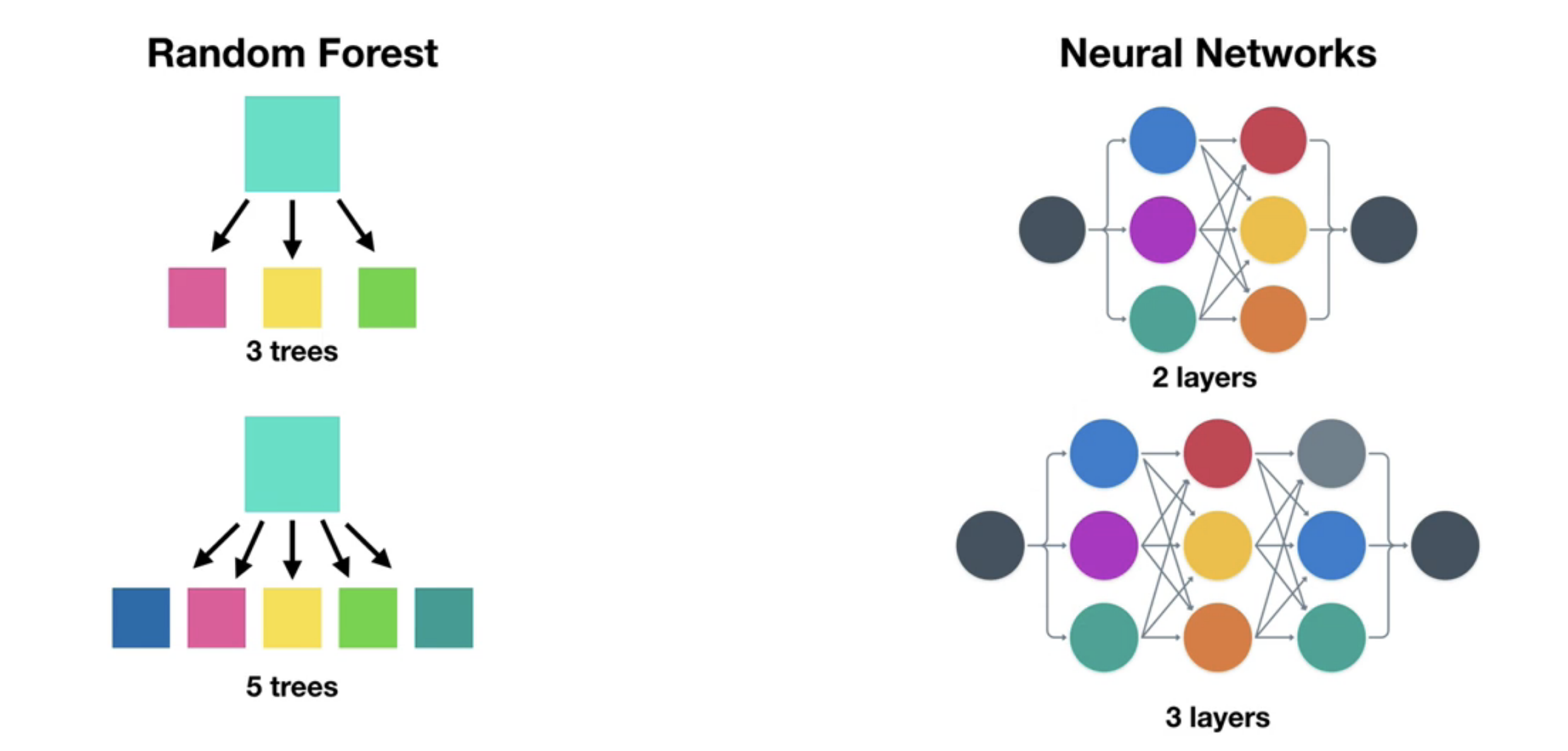

when we complete our model training on training data, it is time to improve it's accurecy further. This can be done by adding trees in Random forest or adding additional layers in Neural Network. Tuning can be place on training or validation data set.

💡

A model's first result arent it's last

Comparison

Once training is done it's time to see how our model will perform in the real world. We do this by running our model on test data. This gives a results about the accuracy of the model.

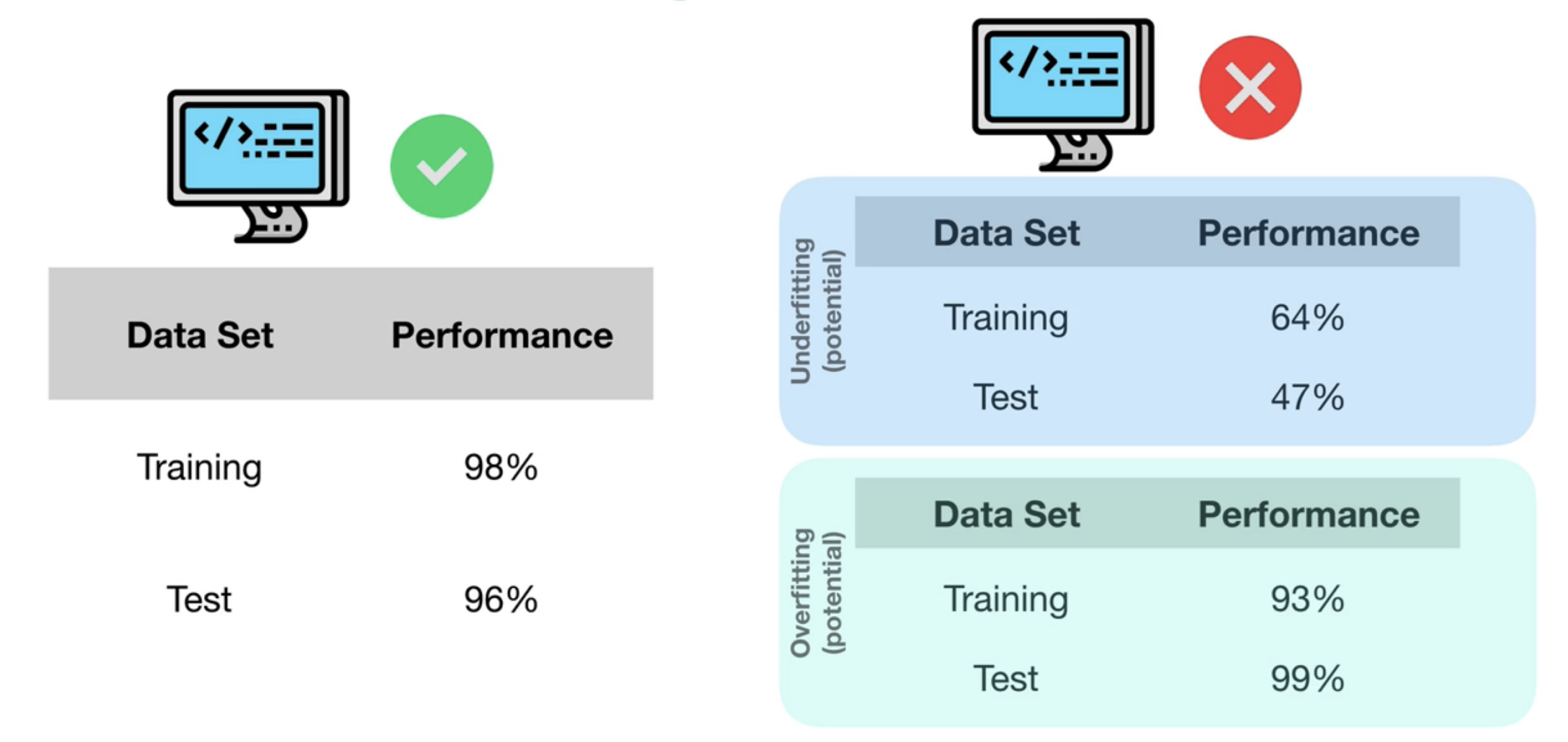

traning accuracy and test accuracy should be approximately equal.

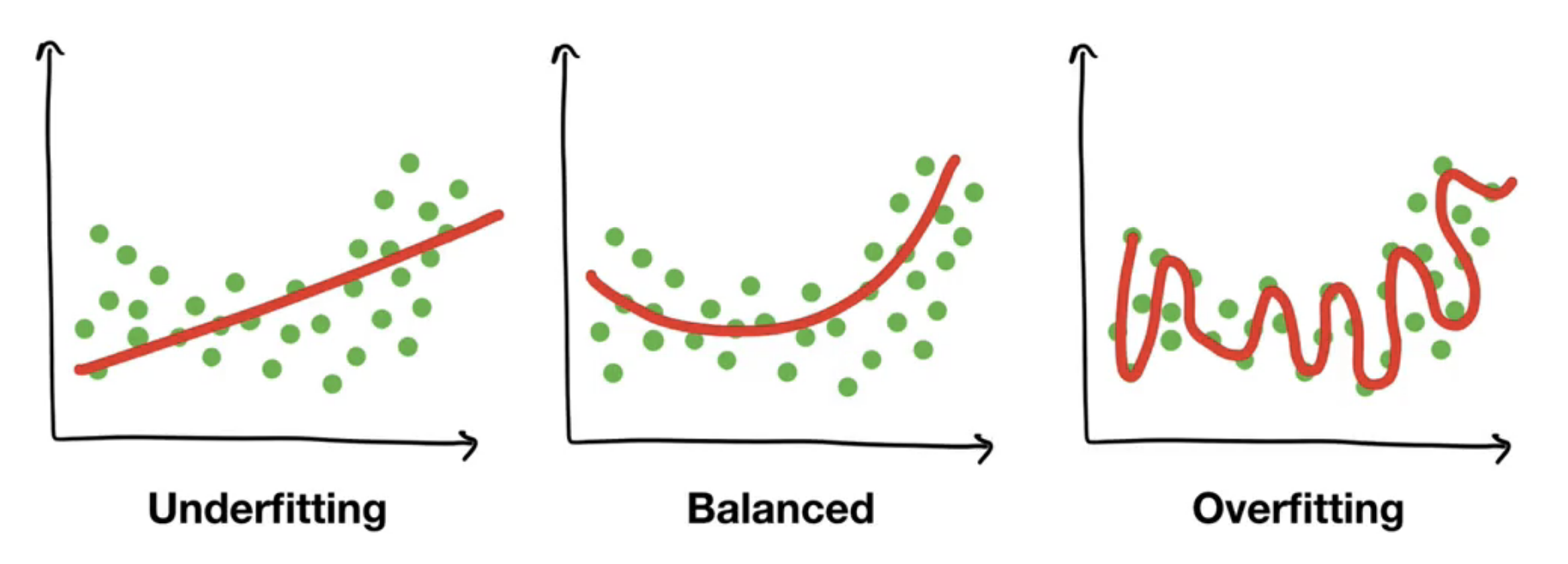

training accuracy >> test accuracy = Underfitting It happens because of data mismatch may be the features of your training data set is different than the test data.

Fixes: - Try a more advanced model - Increase model hyperparameters - Reduce amount of features - Train longer

test accuracy >> training accuracy = Overfitting This happens beause of data leaking, like some of your test data is already present in the trainig data

Keep the test data seprate at all cost

Fixes: - Collect more data - Try a less advanced model

we should avoid this two conditions.



Experiments

Now that our model is ready, and it's giving good outputs but still we wated to improve the performance then we will start experimenting, may be using different models, may changing the features for training or may be tweaking the input to the model.

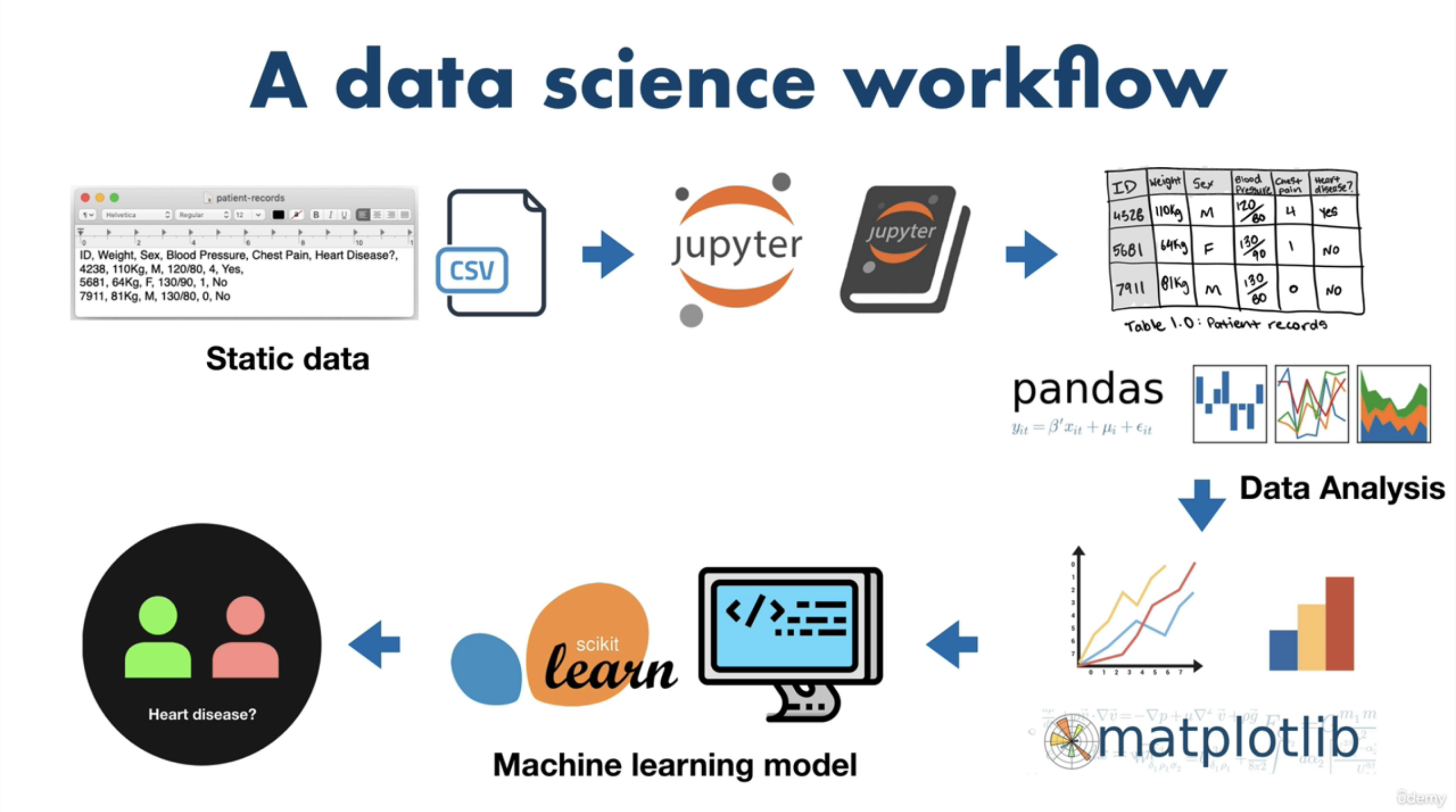

Data Science Workflow
